2 phase 4 leads 28mm 0.6A hybrid Worm gear nema 11 stepper motor 1Nm holding torque Featured Image
  • 2 phase 4 leads 28mm 0.6A hybrid Worm gear nema 11 stepper motor 1Nm holding torque
  • 2 phase 4 leads 28mm 0.6A hybrid Worm gear nema 11 stepper motor 1Nm holding torque
  • 2 phase 4 leads 28mm 0.6A hybrid Worm gear nema 11 stepper motor 1Nm holding torque
  • 2 phase 4 leads 28mm 0.6A hybrid Worm gear nema 11 stepper motor 1Nm holding torque

2 phase 4 leads 28mm 0.6A hybrid Worm gear nema 11 stepper motor 1Nm holding torque

Short Description:

this is a worm gear nema 11 stepper motor,the shaft of stepper motor is made of worm shaft,to match the worm wheel of gearbox.   the datasheets:


  • Motor type: stepper motor/step motor
  • Motor structure: hybrid
  • Motor phase: 2
  • Motor leads: 4
  • Motor step angle: 1.8 deg
  • Motor phase current: 0.6A
  • Motor holding torque(kg.cm): 1
  • Gear type: worm gear
  • Gear ratio: 12:1
    • Download as PDF

    Product Detail

    Other Detail

    Product Tags

    this is a worm gear nema 11 stepper motor,the shaft of stepper motor is made of worm shaft,to match the worm wheel of gearbox.

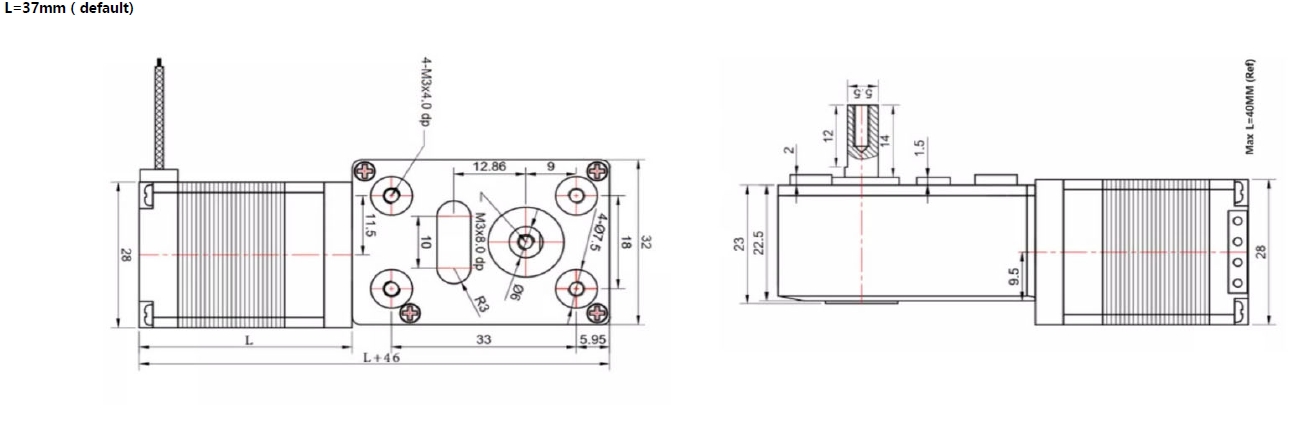

    step motor drawings



    the datasheets:

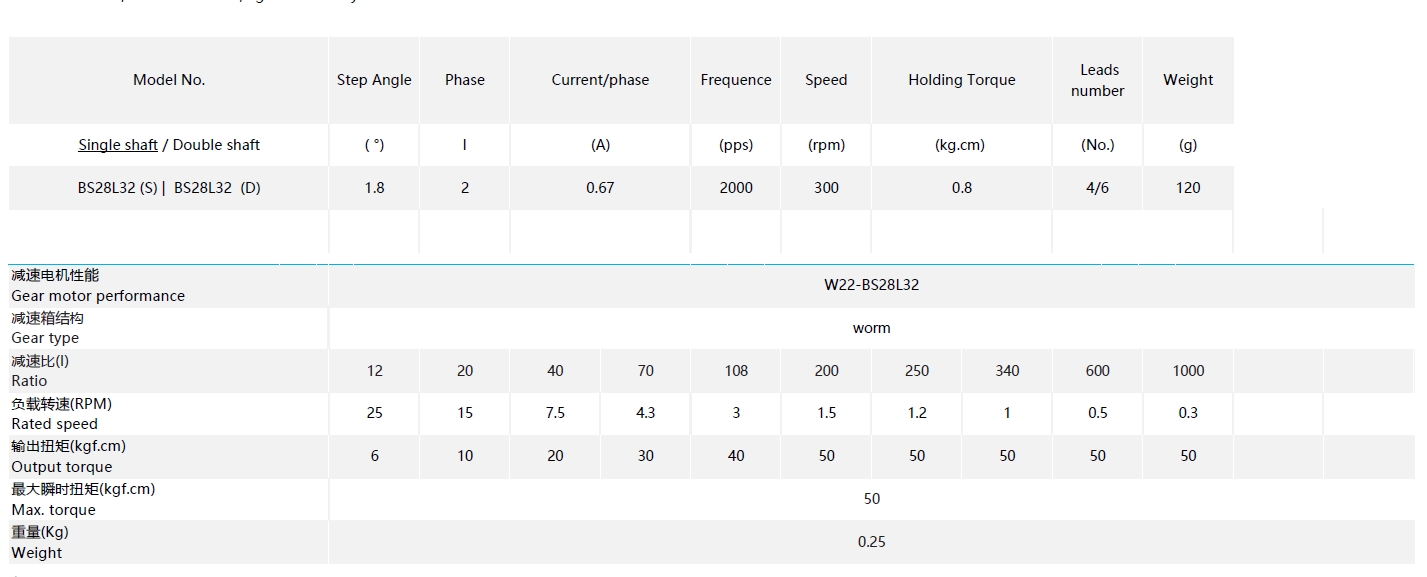

    stepper motor datasheets
