28mm 0.6A ratio 12:1 Worm gear 2 phase 4 leads hybrid nema 11 stepper motor Featured Image
  • 28mm 0.6A ratio 12:1 Worm gear 2 phase 4 leads hybrid nema 11 stepper motor
  • 28mm 0.6A ratio 12:1 Worm gear 2 phase 4 leads hybrid nema 11 stepper motor
  • 28mm 0.6A ratio 12:1 Worm gear 2 phase 4 leads hybrid nema 11 stepper motor
  • 28mm 0.6A ratio 12:1 Worm gear 2 phase 4 leads hybrid nema 11 stepper motor

28mm 0.6A ratio 12:1 Worm gear 2 phase 4 leads hybrid nema 11 stepper motor

Short Description:

Product Information Product description  Product  attributes nema 11 stepper motor,nema 11 step motor,step motor with gearbox,stepper motor plus gearbox,stepper motor with worm gear,step motor with worm reducer Features & advantages small size gearbox,metal worm gearbox, low noise,long life time,High energy density(energy conservation) Product application electric tools,Tattoo machine,Grinding machine,high speed need application,reliable requirements machine Pic...


  • Motor type: stepper motor/step motor
  • Motor structure: hybrid
  • Motor phase: 2
  • Motor leads: 4
  • Motor step angle: 1.8 deg
  • Motor phase current: 0.6A
  • Motor holding torque(kg.cm): 1
  • Gear type: worm gear
  • Gear ratio: 12:1
    • Download as PDF

    Product Detail

    Other Detail

    Product Tags

    Product Information
    Product description

    Product  attributes

    		 nema 11 stepper motor,nema 11 step motor,step motor with gearbox,stepper motor plus gearbox,stepper motor with worm gear,step motor with worm reducer

    Features &

    advantages

    		 small size gearbox,metal worm gearbox, low noise,long life time,High energy density(energy conservation)

    Product application

    electric tools,Tattoo machine,Grinding machine,high speed need application,reliable requirements machine

    Pictures

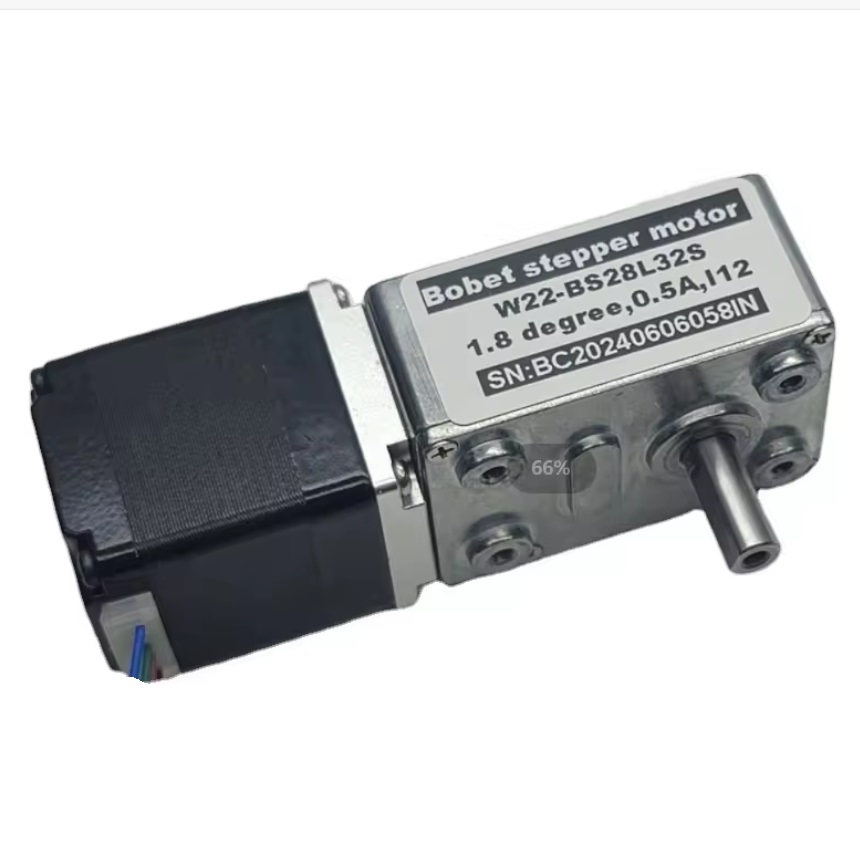

    nema 11 stepper motor gear

     Datasheet



    Model name



    Driver

    Voltage

     (VDC)



    Step angle

    (deg)

    Phase current

    (A)

    Resistance

    (Ω)

     Inductance

    (mH)

     Holding torque

    (Nm)

      Encoder

    Gearbox

    Ratio



    W22-BS28L32S-18



    		 12~24     1.8     0.67  6   5    0.08 optional 18:1



    W22-BS28L32S

     -12

    		  12~24     1.8     0.67   6   5     0.08 optional  12:1

    Diagram of motor’s speed vs torque:

    The red one is our default(standard) model,other performance of motors can be customized.

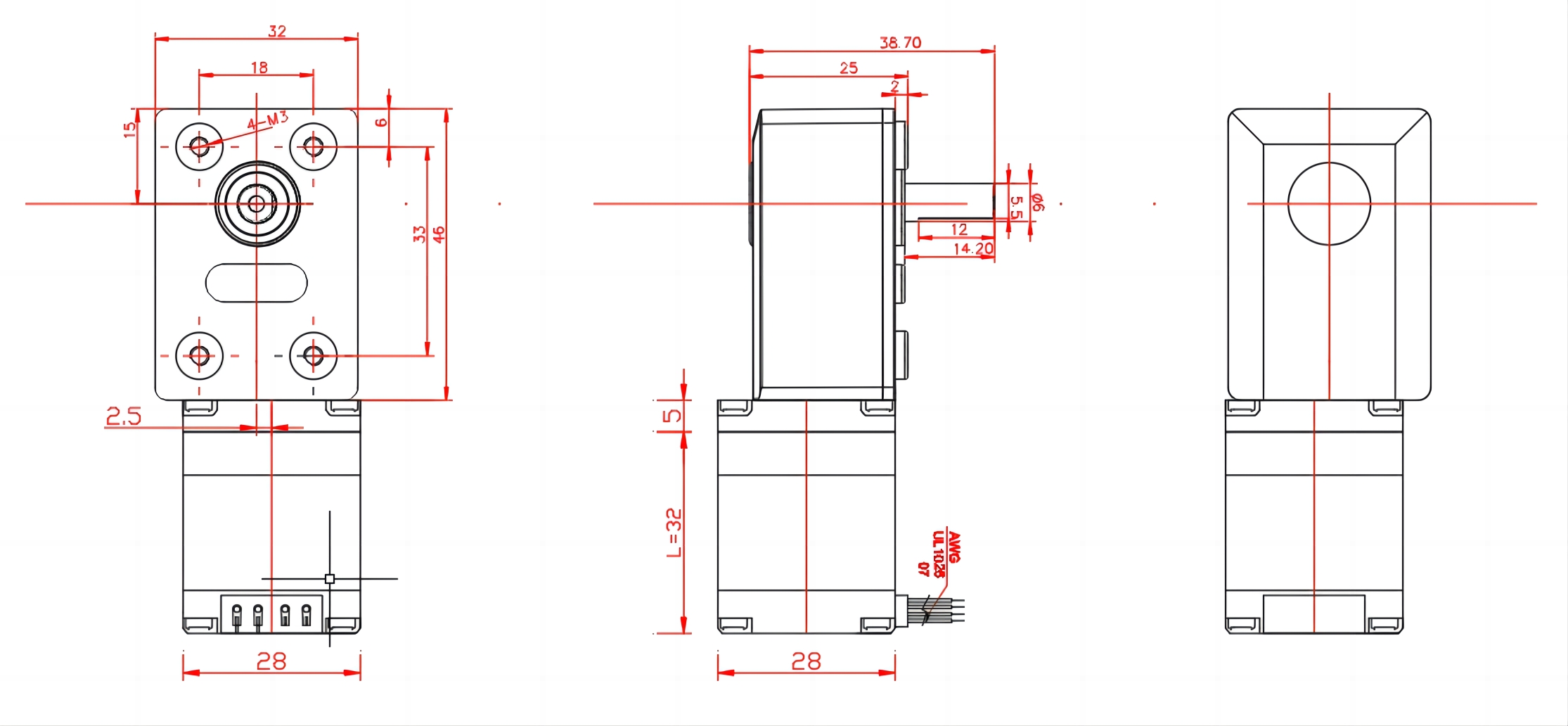

     Dimensions

    W22-BS28L32 NEW

    Videos

    The video is available on youtube and our official website,click here to watch.

    Sample&bulk terms

    When we clearly understand the exact needs of customers,we can make samples for customers. after samples are approved ,All parameters, specifications ,life time,dimensions,and performance of the products of subsequent batch orders will be consistent with the samples.

    Q1: Do we provide free sample?

    A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need to make and have to charge, because samples cost.

    How to order
    How to order

     Contact us to order online (by alibaba online Credit Trade Assurance service) or Bank T/T.

     we accept online order by alibaba or offline order. we have export business license, and our bank can accept any   payment from any countries,      our logistics agent and us will ship goods to your hand if you want.

     Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.
