Product Pictures

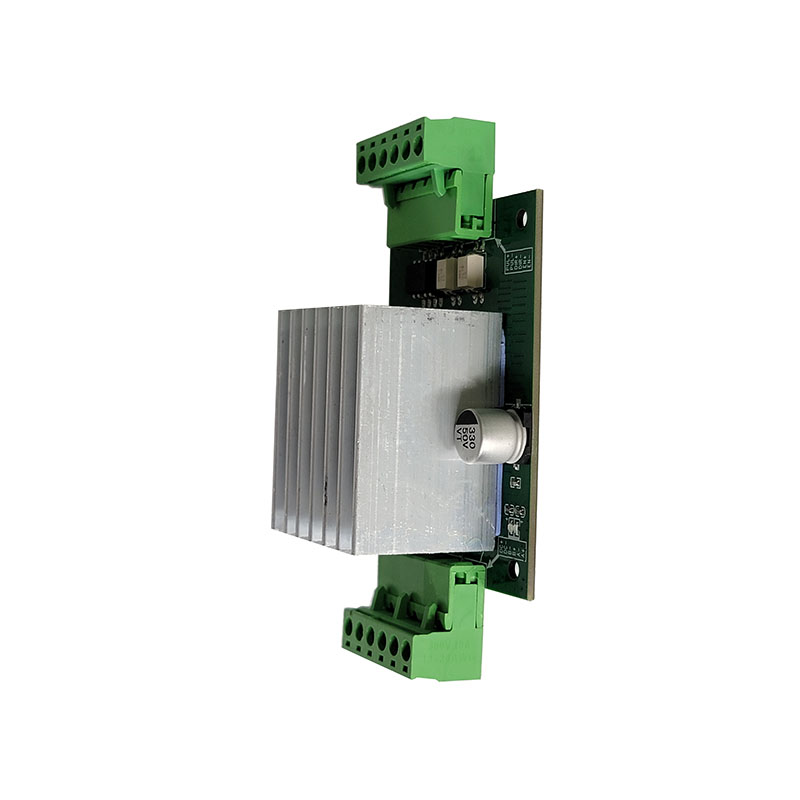

This drive model is DR109A,designed and manufactured by Bobet company,to be economic version stepper
driver board, Max 3.5A current output, the breakdown of heightening to 32 segments,
for high segmentation purposes. Applicable stepper motor: 28， 35， 42, 57 type of 2-phase 4-phase (4-
wire 6 wire line 8)

Product Description & Features

Features:
1, 9V-42V DC power supply;
2, H-bridge bipolar constant-phase flow-driven;
3, the maximum output current of 3.5A eight optional;
4, up to 32 segments of six kinds of sub-modes available;
5, the input signal is high-speed optical isolation;
6, standard common anode single pulse interface;
7, offline hold function;
8, semi-enclosed chassis can accommodate more demanding environment;
9, provide energy semiautomatic current lock function;
10, built-in thermal protection and overcurrent protection.

Company Profile

Motor advantage:
Reliable, precision gear, long life time, save energy, low noise, smoothly rotate
Easy speed regulation and reversible
Motor application:
Industrial machine, AGV, Robot, ATM, Car, Medical machine, Household, agricultural machinery, farm machinery,CNC, Automatic machine, lawn mower, Oven machine,Door opener, Barrier gate, Automatic door, windows, curtains, toys, Juicer, Harvester, Sweeping machine, truck door, pump, Engraving machine

​

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angle gearbox,precision planetary gearbox,single phase,3 phases AC motors,which is about 100w,200w,300w,400w,500w,600w capacity.
