Manufacturer 250w water cooling Non-metallic processing 60000rpm high speed spindle motor 250w
75v water cooling 60000rpm 250w Spindle Motor profile:
Spindle motors are widely used for theirs high speed (more than 5000rpm),such as Engraving machine. using precision ball bearing, strong permanent magnetic with dynamic Balance Testing and Compensation, reliable and powerful , high speed, smoothy,high torque, low noise, smooth transmission, no resonance.
Spindle Motor data list:
| Model Name | Voltage
(V) |
Speed
(rpm) |
Current （A） | Rated power
(Watt) |
Cooling | Max.Torque (Kg.cm) | Frequency
(HZ) |
Usage | Weight（Kg） | Diameter
(mm) |
| GDZ48-250 | 75VAC | 60000 | 4.5 | 250 | water | 0.52 | 1000 | Non-metallic | 1.5 | 42 |
| GDZ55-48 | 48VDC | 24000 | 7 | 300 | air | 0.6 | 0 | Non-metallic | 2.6 | 55 |
Spindle Motor advantage:
Reliable, precision gear, long life time, save energy, low noise, smoothly rotate
Easy speed regulation and reversible
Motor application:
Industrial machine, AGV, Robot, ATM, Car, Medical machine, Household, agricultural machinery, farm machinery,CNC, Automatic machine, lawn mower, Oven machine,Door opener, Barrier gate, Automatic door, windows, curtains, toys, Juicer, Harvester, Sweeping machine, truck door, pump, Engraving machine

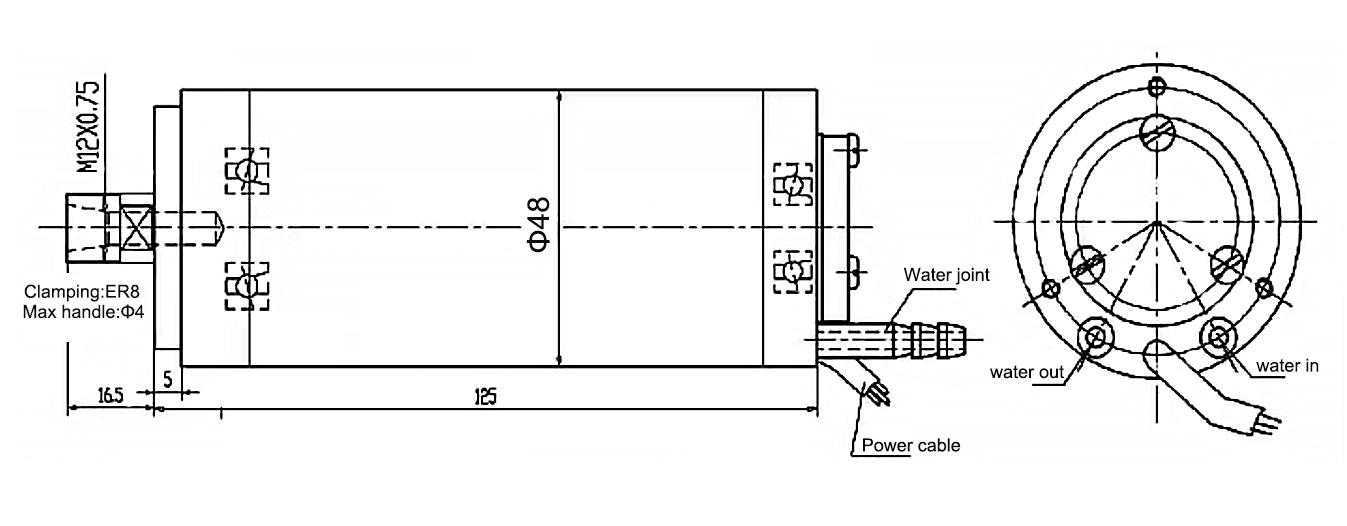

Motor dimension:
备注 note:
1.减速电机电压，转速，扭矩可在一定范围内定制；Voltage,speed and torque of gear motors can be customized within a certain range.
2.部分减速电机可以加装编码器或刹车制动器；Encoder and brake are optional for some gear motors.
3.减速电机可以正反转、调速；Gear motors can rotate CW or CCW,and speed adjustable.
4.扭矩（扭力）单位换算：1N.m=10.2kg.cm=8.85lb.Inch=142.86oz.Inch.
