Max.8000rpm 230Nm 30kw servo motors

Short Description:

Product Information  ———————————————————————————————————————————————————————————————————̵...


  • Motor type: AC Servo motors
  • Motor structure: asynchronous motor
  • Motor Voltage: 380VAC
  • Motor Speed: 1500RPM
  • Motor Power: 30kW
  • Motor Current: 56A
  • Motor torque: 190
  • Cooling: Air
  • Product Detail

    Other Detail

    Product Tags

    Product Information

     —————————————————————————————————————————————————————————————————————————–

    Product description>>>


    Product  attributes

    30Kw servo motors,asynchronous AC servo motors

    Features &

    advantages

    brushless,stable magnet,strong force,reliable,long life time,energy conservation,high efficient, low noise,good quality,30minutes over-load capacity

    Product application

    big duty CNC system

     Pictures

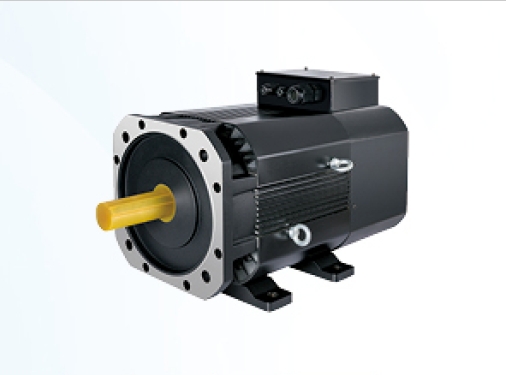

    30Kw servo motors

     Datasheet

     Model number  Rated voltage(V)  Rated current(A)  Rated Torque(Nm)  Rated speed(RPM)  Max. torque(Nm)  Rated power(KW)  Max.power(kw)  Inertia(kg.m2)
     380-265F-60 380 56 50  190 230  30  37  0.16
        -

    Dimension

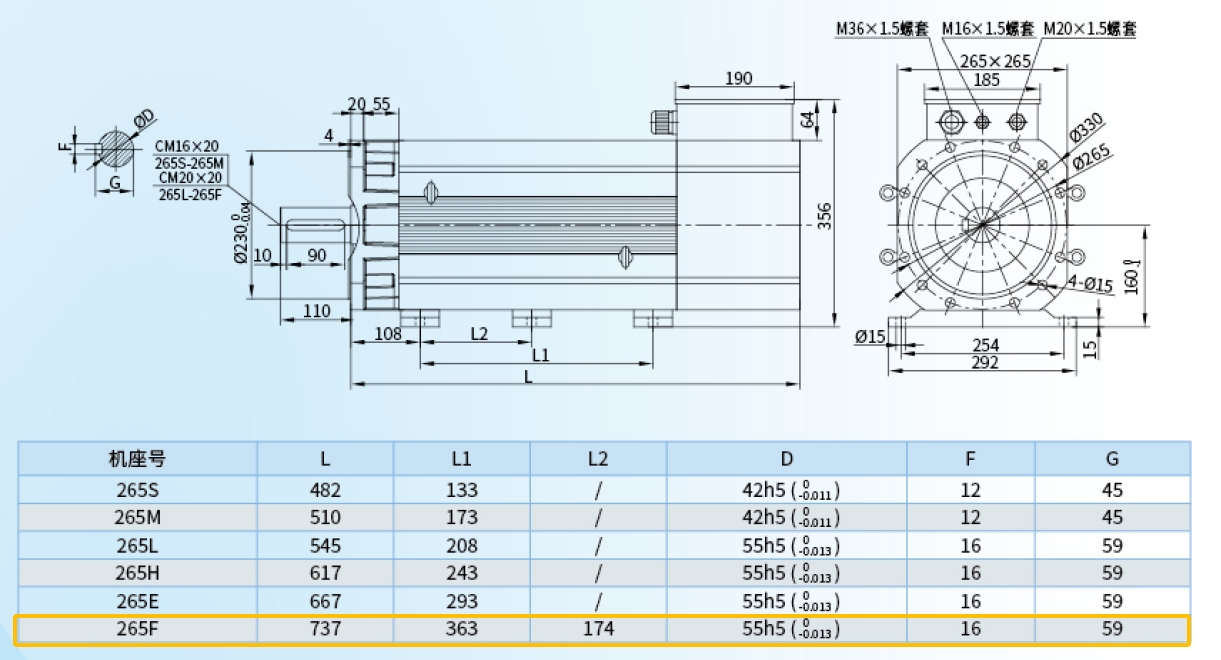

    30Kw servo motors dimension

     Videos

    PLS Go to youtube.com to watch related video.
