PM synchronous Large AC servo motors 1500rpm 1000Nm 160kw servo motors

Short Description:

Product Information  ———————————————————————————————————————————————————————————————————̵...


  • Motor type: PM AC Servo motors
  • Motor structure: PM synchronous motor
  • Motor Voltage: 380VAC
  • Motor Speed: 1500RPM
  • Motor Power: 160KW
  • Motor Current: 276A
  • Motor torque: 1000Nm
  • Cooling: Air
  • Product Detail

    Other Detail

    Product Tags

    Product Information

     —————————————————————————————————————————————————————————————————————————–

    Product description>>>


    Product  attributes

    PM synchronous Large AC servo motors 1500rpm 1000Nm 160kw servo motors

    Features &

    advantages

    brushless,stable magnet,strong force,reliable,long life time,energy conservation,high efficient, low noise,good quality,30minutes over-load capacity

    Product application

    big duty CNC system

     Pictures

    PM synchronous servo motors 160kw

     Datasheet

     Model number  Rated voltage(V)  Rated current(A)  Rated Torque(Nm)  Rated speed(RPM)  Max. torque(Nm)  Rated power(KW)  Max.power(kw)  Inertia(kg.m2)
     380-8SF360E-160 380 276 1000  1500 2000  160  160 6740
        -

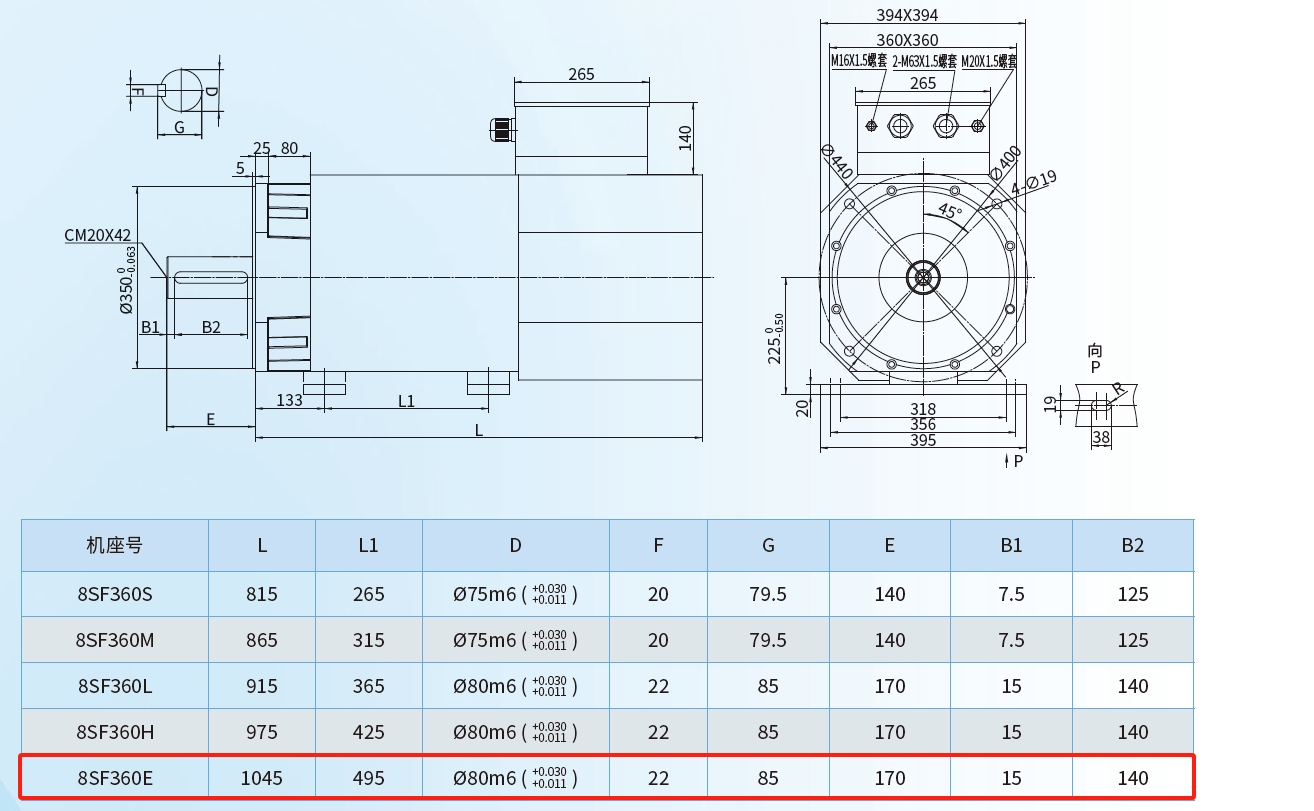

    Dimension

    PM synchronous servo motors 160kwS

     Videos

    PLS Go to youtube.com to watch related video.

    More products

     —————————————————————————————————————————————————————————————————————————-

    More products>>>

    AC&Brush DC&Brushless dc spindle motor



    Company Information

     —————————————————————————————————————————————————————————–

    Company Information>>>

     Our values

     we provide reliable and competitive products as well custom service,Reduce costs and create value for customers.

    Electric motor custom manufacturer

     Advantages

     R&D,production process

     Quality Control system

     Brand,Certification and Patent

    bobet iso9001

     CE&ROHS&REACH

     Team and cultures

    Sample&batch order terms

     —————————————————————————————————————————————————————————–

    Sample&batch order terms>>>

    When we clearly understand the exact needs of customers,we can make samples for customers. after samples are approved ,All parameters, specifications ,life time,dimensions,and performance of the products of subsequent batch orders will be consistent with the samples.

    Q1: Do we provide free sample?

    A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need to make and have to charge, because samples cost.

    Q2:Do you customize electric motors and gearboxes?

    A2: Yes, we do.

    Q3: What certificates do you have for your products?

    A3: we have ISO9001, CE,ROHS,REACH(2024 NEW)

    Q4: what quality guarant do you have?

    A4:Usually we guarant 1 year ,special products 2 years or more.

    How to order

     —————————————————————————————————————————————————————————————————————————-

    How to order>>>

    Contact us to order online (by alibaba online Credit Trade Assurance service) or Bank T/T.

     we accept online order by alibaba or offline order. we have export business license, and our bank can accept any   payment from any countries, our logistics agent and us will ship goods to your hand if you want.

     Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.

    Need more help

     —————————————————————————————————————————————————————————————————————————-

    Need more help>>>

    …………………………………………………………………………………….Selection  reference guide for motors……………………………………………………………………………………………………..



    Items Brush dc motor Brushless dc motor Stepper motor Servo motor Driver&controller Related gearbox Hub motor Induction AC motor
    Pictures

    dc motor.JPG

    Outer

    rotor

    Inner rotor stepper motor.JPG  servo motor.JPG RS485 motor drive.png Worm gear Planetary gear   hub wheel motor.JPG  Induction AC motor.JPG
    ourter rotor bldc motor.JPG  bldc motor.JPG  SELF-LOCK rv Worm gearbox .JPG  planetary gearbox.JPG
    Typical Application

     Run with DC power supply,such as battery.drive direct

     DC power UAV,

    Aerocraft

    machines

    no need positioning

     Need positioning

    machine

     CNC,

    precision

    robot

    Stepper motor & bldc motor needed  low speed high torque machine  low speed high torque machine

    Scooter,

    wheel; chair car

    Factory machine

    Features&

    Advantages

     easy speed regulation and direction control

     High speed,

    reliable

     long life time and high efficient

     low speed

    about 300-1000rpm

     high speed up to 3000rpm

    fast response

     control the speed,direction…of motor  self lock  big reduction  easy use  widely use
